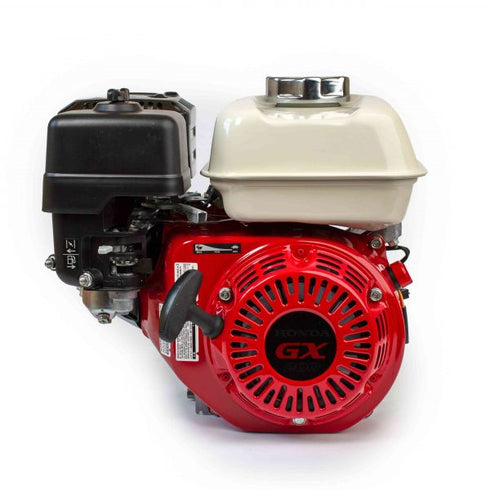

Honda GX200 196cc 6.5Hp 3/4" Horizontal Shaft Engine
MOTHGX200
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
Honda’s GX200 series air cooled 4 stroke OHV horizontal shaft engines deliver solid reliable power and performance in a compact, lightweight design with an optimized layout of cylinder, air cleaner, muffler and fuel tank for easy installation into a wide range of equipment. Consistent easy starting thanks to Honda’s automatic mechanical decompressor and hot-sparking transistorized ignition.
Honda GX200 Specifications:
- GX200, 6.5HP max.
- Engine is easy starting OHV design.
- Pull start.
- Max net torque 12.4Nm @2500rpm.
- 3/4” keyed shaft.
- Bore x Stroke – 68 x 54.
- Displacement 196cm³.
- Compression ratio 8.5:1.
- PTO Shaft Rotation - Counter-clockwise (from P.T.O. side).
- Cast iron bore.
- 3.1L fuel capacity.
- 0.6ltr oil capacity.
- Fuel consumption; 1.7L/hour @3600rpm.
- Dimensions (LxWxH); 313 x 376 x 346mm.
- Weight 16kg.
Common Applications:
- Commercial Lawn and Garden Equipment.
- Tillers / Cultivators.
- Generators.
- Construction / Industrial Equipment.
- Agricultural Equipment.
- Water Pumps.
- Pressure Washers.
- Forestry Equipment.
Honda GX200 Specifications:
- GX200, 6.5HP max.
- Engine is easy starting OHV design.
- Pull start.
- Max net torque 12.4Nm @2500rpm.
- 3/4” keyed shaft.
- Bore x Stroke – 68 x 54.
- Displacement 196cm³.
- Compression ratio 8.5:1.
- PTO Shaft Rotation - Counter-clockwise (from P.T.O. side).
- Cast iron bore.
- 3.1L fuel capacity.
- 0.6ltr oil capacity.
- Fuel consumption; 1.7L/hour @3600rpm.
- Dimensions (LxWxH); 313 x 376 x 346mm.
- Weight 16kg.
Common Applications:
- Commercial Lawn and Garden Equipment.
- Tillers / Cultivators.
- Generators.
- Construction / Industrial Equipment.
- Agricultural Equipment.
- Water Pumps.
- Pressure Washers.
- Forestry Equipment.
