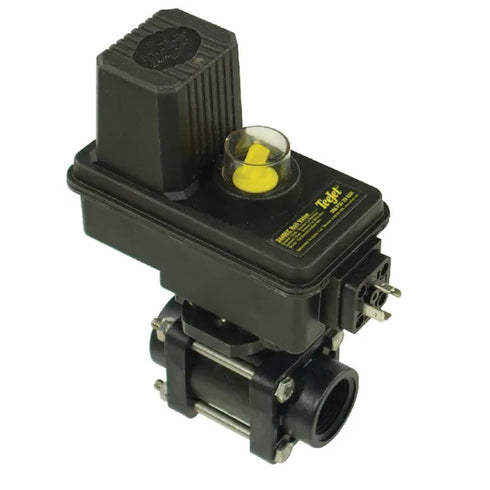

Teejet Solenoid, Valve 1" dump, yellow indicator, 2 way.

Genuine Tee Jet 344BEC-24-C Directovalve Electric 1" 2-Way Shutoff Valve. Used in a variety of applications with flow rate of 32 GPM and a maximum working pressure of 300 PSI allows complete shutoff in 0.7 seconds. Built with a Stainless Steel Stem with optional polypropylene or stainless steel ball.
- 22 RPM, 0.7 second shutoff fully open to close.
- Flexible inlet/outlets provide quick simple plumbing for a single valve.
- 3 way Ball Valve.
- Stainless steel stem with optional polypropylene or stainless steel ball.
- Maximum pressure rating is 300 PSI (20 bar).
- Flow rate 121 l/min with a 5 PSI (0.34 bar) pressure drop, 170 l/min at a 10 PSI (0.69 bar) pressure drop.
- Wetted parts are reinforced polypropylene.
- 12V Shutoff function.
- 3 Wire.
- 1" BSPF Threads.
Available with E or EC series motors with DIN or CABLE versions. E type motors work with DPDT (double pole, double throw) switch. EC type motors work with simple SPST (single pole, single throw) on/off switch and are compatible with all sprayer controls.
Current draw less than 2 amps.
(1.7 amps at 40 in-lbs.).
