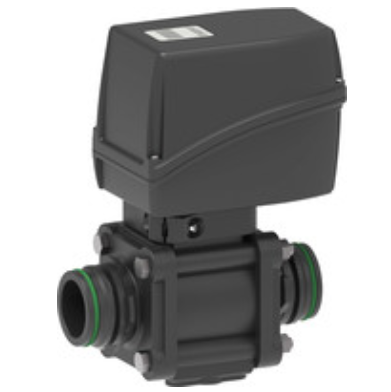

Arag 853, Section Valve 12v 2" bayonet tail.

Arag 871 Arag 853 series 12v electric ball valve with 2 x BSP(M) adapters included 12 bar (174 psi) max - all sizes. 2-way electric bolted ball valves with fork couplings - SAE J1939 protocol. The electric ball valves of the 853 series are the result of a special design focused on the functionality and reliability of an accessory that is essential both in the agricultural and in the industrial field. All valves have technical features that make them unique on the market and safe and reliable parts for any type of system. A complete range consisting of 2-way, 3-way valves available both with side and lower 4/5-way coupling. The electric valves of the 853 series feature a new completely redesigned gear motor that allows a longer duration as well as great reliability and flexibility. In addition to the new bodies and new connection sizes, the most outstanding news concerns the CAN-Bus version with SAE J1939 protocol, which makes it easy to control even very complex hydraulic circuits, such as those for the management of sprayers’ auxiliary services.

General features of the Arag 853 series section valve:
- Patented integrated fixing system.
- Directly on the body; no inserts.
- No problems in case of hole alignment mistakes.
- Fixing through hexagonal head screws M8 (or 5/16 UN).
The colour given in the tables of the models that can be mounted with camlock couplers refers to the measurement of the coupler itself. The gearmotor of the 853 valves can be easily separated from the valve body and oriented in any position by loosening the collar and rotating the motor in positions of 90°. The electric ball valves series 853 are available, on request, also with 24Vdc power supply.

Technical features of the Arag 853 series section valve:
- Electric ball valves.
- 12 Vdc electric activation.
- Stainless steel rotation pin.
- Teflon® ball seats.
- Internal O-rings in Viton®.
- Internal ball in polypropylene reinforced with fiberglass, in stainless steel or PE-UHMW Stainless steel flange tie-rods, protected by the valve body.
- Gear motor easy orientation.
- Simple maintenance: the motor can be easily separated from the valve.
- Available in the version with 3-wire electric control and A-net connection.
- “Plug and Play” addressing of the valves of the A-net version.
Available with fork couplings, male and female threads, Camlock adapter or clamp coupling Supplied with standard BSP and, upon request, NPT threads.
