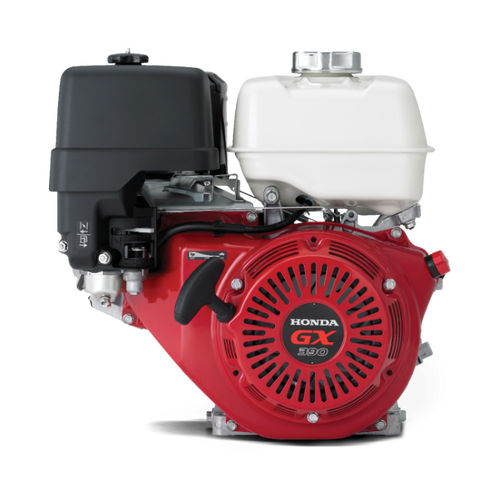

Honda GX390 398cc 13Hp 1" Horizontal Shaft Engine
MOTHGX390
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
Honda's GX390 series air cooled 4 stroke OHV horizontal shaft petrol engine deliver solid reliable power and performance in a compact, lightweight design with an optimized layout of cylinder, air cleaner, muffler and fuel tank for easy installation into a wide range of equipment. Consistent easy starting thanks to Honda’s automatic mechanical decompressor and hot-sparking transistorized ignition.
Features:
- HONDA GX390, 13HP max.
- Max net torque 25.1Nm @2500rpm.
- 1” keyed shaft.
- Pull start.
- Bore x stroke – 88 x 64.
- Displacement 389cm³.
- Compression ratio 8:1.
- Cast iron bore.
- 6.5L fuel capacity.
- Fuel consumption; 3.7L/hour @3600rpm.
- PTO Shaft Rotation - Counter-clockwise (from P.T.O. side).
- Dimensions (LxWxH); 405x450x443mm.
- Weight 31kg.
- Base Mount Bolt Hole Measurements 195mm Across x 99-103mm Deep.
- Bolt holes around the shaft measure 90mm square, centre to centre.
Common Applications:
- Commercial Lawn and Garden Equipment.
- Tillers / Cultivators.
- Generators.
- Construction / Industrial Equipment.
- Agricultural Equipment.
- Water Pumps.
- Pressure Washers.
- Forestry Equipment.
Features:
- HONDA GX390, 13HP max.
- Max net torque 25.1Nm @2500rpm.
- 1” keyed shaft.
- Pull start.
- Bore x stroke – 88 x 64.
- Displacement 389cm³.
- Compression ratio 8:1.
- Cast iron bore.
- 6.5L fuel capacity.
- Fuel consumption; 3.7L/hour @3600rpm.
- PTO Shaft Rotation - Counter-clockwise (from P.T.O. side).
- Dimensions (LxWxH); 405x450x443mm.
- Weight 31kg.
- Base Mount Bolt Hole Measurements 195mm Across x 99-103mm Deep.
- Bolt holes around the shaft measure 90mm square, centre to centre.
Common Applications:
- Commercial Lawn and Garden Equipment.
- Tillers / Cultivators.
- Generators.
- Construction / Industrial Equipment.
- Agricultural Equipment.
- Water Pumps.
- Pressure Washers.
- Forestry Equipment.
