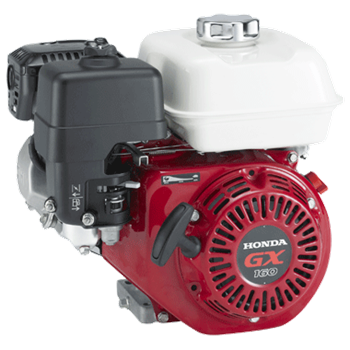

Honda GX160 163cc 5.5Hp 3/4" Horizontal Shaft Engine
MOTHGX160
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
Motor, Honda GX160 163cc 5.5Hp 3/4" Horizontal Shaft.
Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120, 160, and 200 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.
Honda GX160 Specifications:
- GX160, 5.5HP max.
- Engine is easy starting OHV design.
- Max net torque 10.3Nm @2500rpm.
- 3/4” keyed shaft.
- Bore x Stroke – 68 x 45.
- Displacement 163cm³.
- Compression ratio 8.5:1.
- PTO Shaft Rotation - Counter-clockwise (from P.T.O. side).
- Cast iron bore.
- Recoil start.
- 3.1L fuel capacity.
- Fuel consumption; 1.4L/hour @3600rpm.
- Oil capacity 0.6ltr.
- Dimensions (LxWxH); 312x362x335mm.
- Weight 15kg.
Common Applications:
- Commercial Lawn and Garden Equipment.
- Tillers / Cultivators.
- Generators.
- Construction / Industrial Equipment.
- Agricultural Equipment.
- Water Pumps.
- Pressure Washers.
- Forestry Equipment.
Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120, 160, and 200 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.
Honda GX160 Specifications:
- GX160, 5.5HP max.
- Engine is easy starting OHV design.
- Max net torque 10.3Nm @2500rpm.
- 3/4” keyed shaft.
- Bore x Stroke – 68 x 45.
- Displacement 163cm³.
- Compression ratio 8.5:1.
- PTO Shaft Rotation - Counter-clockwise (from P.T.O. side).
- Cast iron bore.
- Recoil start.
- 3.1L fuel capacity.
- Fuel consumption; 1.4L/hour @3600rpm.
- Oil capacity 0.6ltr.
- Dimensions (LxWxH); 312x362x335mm.
- Weight 15kg.
Common Applications:
- Commercial Lawn and Garden Equipment.
- Tillers / Cultivators.
- Generators.
- Construction / Industrial Equipment.
- Agricultural Equipment.
- Water Pumps.
- Pressure Washers.
- Forestry Equipment.
