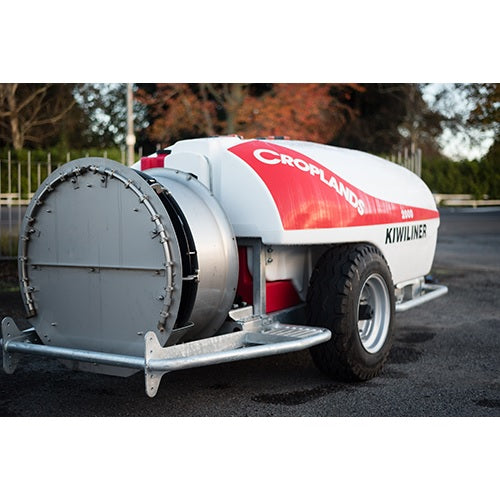

Kiwiliner Orchard Trailer Sprayer 2000 Litre With 920mm Fan
SPRTT2000
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
BA Pumps Kiwiliner Specialised Airblast Trailed Sprayer has a 2000 Litre Impact resistant UV stabilised polyethylene tank, with smooth finish for easy cleaning. Flush (120L) & hand wash (10L) tanks included. Two lids with basket filters & chemical mixer, one lid for top filling & the other for chemical inclusion to eliminate splashing on operator. Drain valve with cam lock fitting & calibrated sight tubes.
Specifications For BA Pumps Kiwiliner Specialised Airblast Trailed Sprayer:
- Pump - Bertolini PBO1540 Diaphragm Pump 150 LPM 50 Bar.
- Nozzles - 20 brass non-drip rollover nozzle bodies complete with 2 sets of ceramic Teejet TXR or ceramic disc & core hollow cone nozzles calibrated to the customers requirement. Stainless steel manifolds eliminate corrosion.
- Controls - Electric ball valves with electric pressure adjustment & pressure relief valve. Includes 12V in-cab switch box & wiring loom. Upgrade to the Arag 350 Bravo Auto Rate Control Unit.
- Agitation - SUPER-MIX Venturi agitator, plus bypass for maximum product agitation.
- Filters - 3 stage filtration, basket lid filter, suction filter, 2 x pressure filters (1 per section) & nozzle tip strainers.
- Fan - 920mm fan diameter, 8 aluminium blades for minimal flex with 7 blade pitch adjustments, air correction vanes for superior air distribution.
- Gearbox - 2 speed gearbox with neutral and soft start clutch. Fan Output Low gearbox speed: 90,000* m3/hr High gearbox speed: 112,000* m3/hr. *Air output at mid blade pitch setting, independently tested at the University of Bologna, Italy.
- PTO Shaft - Wide angle PTO shaft fitted as standard.
- Drawbar - Swivel Hitch, Adjustable height & length.
- Chassis - Hot Dipped Galvanised full length channel section chassis engineered & designed for strength, minimal dirt & moisture retention for maximum corrosion resistance & long service life. Fitted standard with side & rear protection bars.
- Dimensions - (L x W x H) 4834mm x 1870 - 2110mm (adjustable axle width) x 1831mm.
Talk with the Sprayshop Team to learn more.
Specifications For BA Pumps Kiwiliner Specialised Airblast Trailed Sprayer:
- Pump - Bertolini PBO1540 Diaphragm Pump 150 LPM 50 Bar.
- Nozzles - 20 brass non-drip rollover nozzle bodies complete with 2 sets of ceramic Teejet TXR or ceramic disc & core hollow cone nozzles calibrated to the customers requirement. Stainless steel manifolds eliminate corrosion.
- Controls - Electric ball valves with electric pressure adjustment & pressure relief valve. Includes 12V in-cab switch box & wiring loom. Upgrade to the Arag 350 Bravo Auto Rate Control Unit.
- Agitation - SUPER-MIX Venturi agitator, plus bypass for maximum product agitation.
- Filters - 3 stage filtration, basket lid filter, suction filter, 2 x pressure filters (1 per section) & nozzle tip strainers.
- Fan - 920mm fan diameter, 8 aluminium blades for minimal flex with 7 blade pitch adjustments, air correction vanes for superior air distribution.
- Gearbox - 2 speed gearbox with neutral and soft start clutch. Fan Output Low gearbox speed: 90,000* m3/hr High gearbox speed: 112,000* m3/hr. *Air output at mid blade pitch setting, independently tested at the University of Bologna, Italy.
- PTO Shaft - Wide angle PTO shaft fitted as standard.
- Drawbar - Swivel Hitch, Adjustable height & length.
- Chassis - Hot Dipped Galvanised full length channel section chassis engineered & designed for strength, minimal dirt & moisture retention for maximum corrosion resistance & long service life. Fitted standard with side & rear protection bars.
- Dimensions - (L x W x H) 4834mm x 1870 - 2110mm (adjustable axle width) x 1831mm.
Talk with the Sprayshop Team to learn more.
