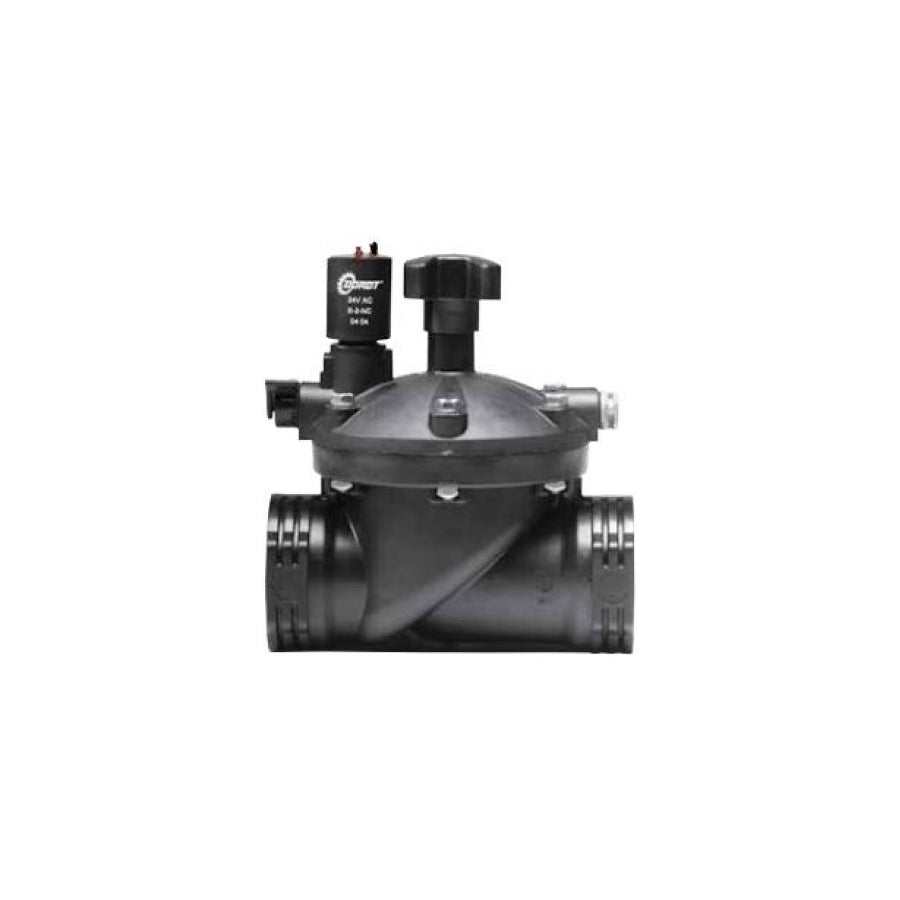

Dorot 80 Series Latching Solenoid Valve 25mm
S25
$77.50
+ GST
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
The Series 80 Valves are Designed to Offer the Highest Performance in Greenhouse, Field Crops and Turf Irrigation Systems. With Straight or Angle Flow Design, The 80 Series Valves are used for all Control Applications while Ensuring Minimal Maintenance and Maximum Reliability.
Standard Specifications:
- Inrush Current: 0.26 Amps.
- Holding Current: 0.12 Amps.
- Low Sensitivity to Dirt.
- High Pressure up to 1000 kPa.
Features:
- Material GPR – Glass Re-inforced Polyamide.
- Fully Supported Diaphragm.
- Durable Corrosion Free Materials.
- 20mm & 25mm Unique Labyrinth Inlet, Helps Prevent Clogging.
- 40mm & 50mm Unique Integral Stainless-Steel Screen Pre Filter at Inlet.
- Manual Overide with Internal Bleed.
- DC Latching – with Flow Control.
l Operating Specifications:
- Minimum Operating Pressure: 50 kPa – 1000 kPa (0.5 – 10 Bar).
- Maximum Water Temperature 60°c.
- Maximum Ambient Temperature 52°c.
- Cold Water use Only, not Designed for Indoor Use.
Standard Specifications:
- Inrush Current: 0.26 Amps.
- Holding Current: 0.12 Amps.
- Low Sensitivity to Dirt.
- High Pressure up to 1000 kPa.
Features:
- Material GPR – Glass Re-inforced Polyamide.
- Fully Supported Diaphragm.
- Durable Corrosion Free Materials.
- 20mm & 25mm Unique Labyrinth Inlet, Helps Prevent Clogging.
- 40mm & 50mm Unique Integral Stainless-Steel Screen Pre Filter at Inlet.
- Manual Overide with Internal Bleed.
- DC Latching – with Flow Control.
l Operating Specifications:
- Minimum Operating Pressure: 50 kPa – 1000 kPa (0.5 – 10 Bar).
- Maximum Water Temperature 60°c.
- Maximum Ambient Temperature 52°c.
- Cold Water use Only, not Designed for Indoor Use.
