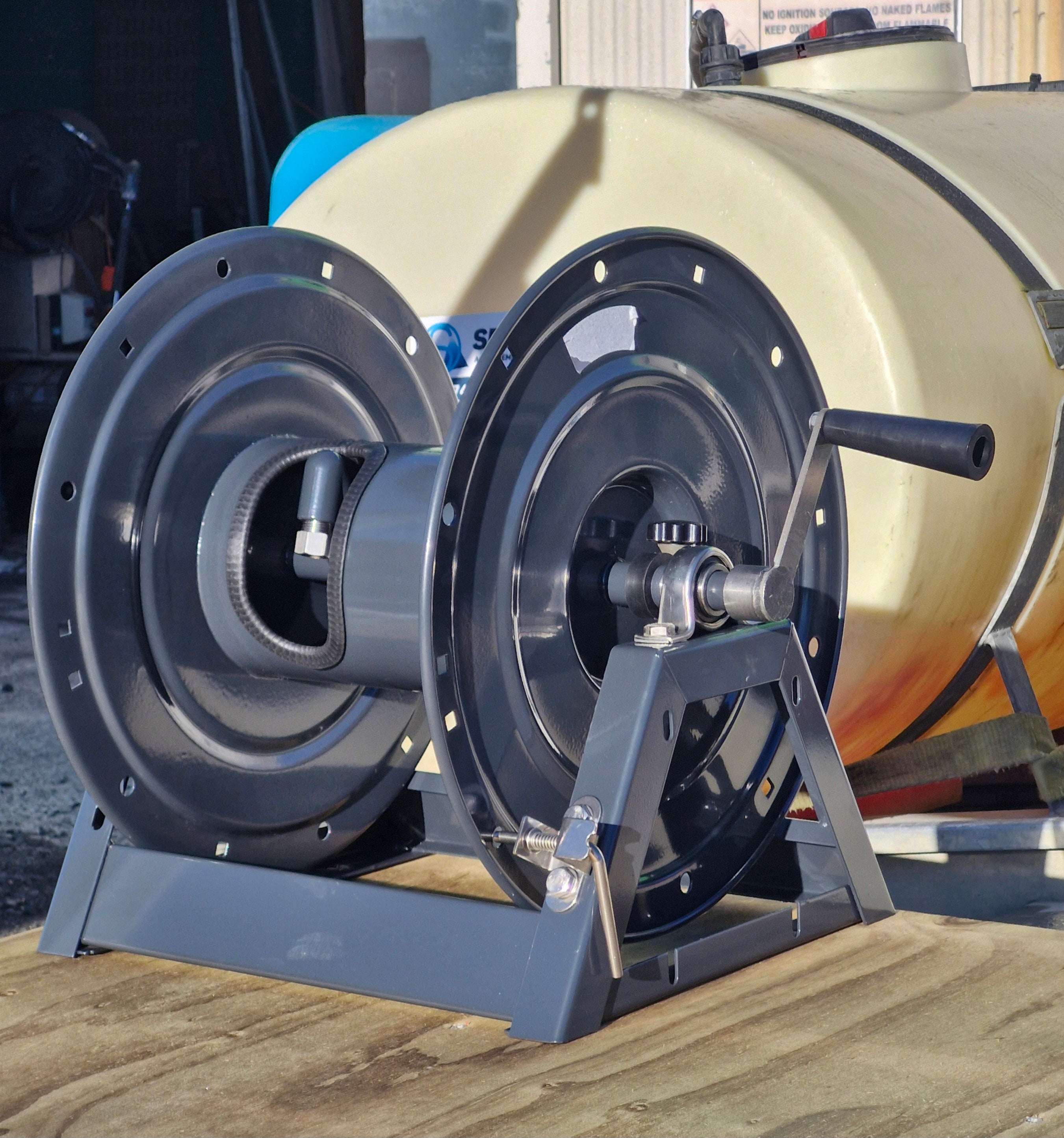

The dimensions of the reel are as follows: 330mm wide at the base, 440mm high, and 650mm overall length from the end of the swivel across to the winding handle.
This durable hose reel is designed to easily accommodate 100 meters of 10mm inside diameter and 18mm outside diameter hose. It features a robust stainless steel and brass swivel assembly, capable of handling pressures up to 850psi. Unlike similar-looking reels in the market that come with inferior 1/4" toy swivels, our reel is built to last.
The hose reel is equipped with a hosetail inside the swivel for easy hose attachment and a hosetail on the outlet of the swivel for connecting from the pump to the reel.
To prevent hose kinking, the reel has a solid rolled drum center. Additionally, it features adjustable reel friction, allowing you to control the unwinding of the hose. The red handle conveniently flips up and down for ease of use.
For secure installation, the steel base of the reel is drilled with holes at each end, enabling you to bolt it down securely.
Some assembly required
