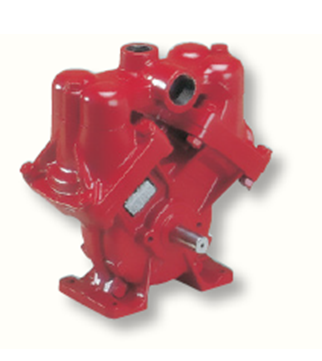

Hardi, 603, Spray pump, 108l/min, 1000rpm.
PUMS821629
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
General Specifications for HARDI 603 spray pump:
- Compact two diaphragm positive displacement pump.
- Low power consumption.
- Self-priming.
- Can be run dry.
- Can rotate clockwise or anticlockwise.
- Single grease point for lubrication.
- Dry sump to simplify maintenance.
- No special tools are needed for maintenance.
- Polyurethane diaphragms and seals.
- Cast iron crankcase and covers.
- 3/4″ suction and pressure ports.
- Cylindrical shaft, 25 mm / 0.98″.
- Supplied with narrow base plate.
- Normal operating revolutions: 800 RPM.
- Maximum pressure: 220 PSI (15 bar).
- Maximum flow: 108 LPM.
- Maximum vacuum: 12.5 PSI (0.85 bar).
- Weight: 33 lbs (14.8 kg).
Recommended to use HARDI suction and pressure dampers.
- Compact two diaphragm positive displacement pump.
- Low power consumption.
- Self-priming.
- Can be run dry.
- Can rotate clockwise or anticlockwise.
- Single grease point for lubrication.
- Dry sump to simplify maintenance.
- No special tools are needed for maintenance.
- Polyurethane diaphragms and seals.
- Cast iron crankcase and covers.
- 3/4″ suction and pressure ports.
- Cylindrical shaft, 25 mm / 0.98″.
- Supplied with narrow base plate.
- Normal operating revolutions: 800 RPM.
- Maximum pressure: 220 PSI (15 bar).
- Maximum flow: 108 LPM.
- Maximum vacuum: 12.5 PSI (0.85 bar).
- Weight: 33 lbs (14.8 kg).
Recommended to use HARDI suction and pressure dampers.
