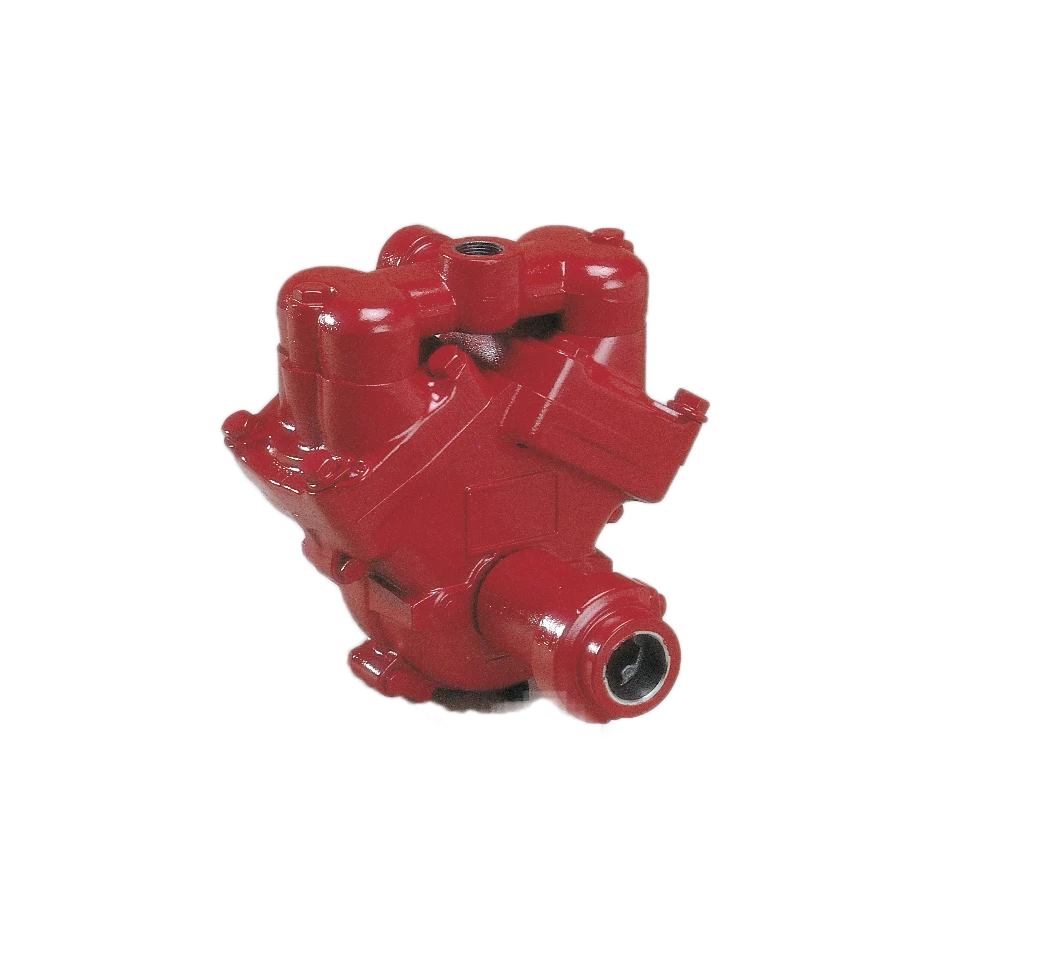

Hardi 603/7 Spray Pump 31 L/Min 540rpm Tapered Shaft
PUMS821624
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
General Specifications for HARDI 603/7 spray pump:
- Compact two diaphragm positive displacement pump.
- Low power consumption.
- Self-priming.
- Can be run dry.
- Can rotate clockwise or anticlockwise.
- Single grease point for lubrication.
- Dry sump to simplify maintenance.
- No special tools are needed for maintenance.
- Polyurethane diaphragms and seals.
- Cast iron crankcase and covers.
- 3/4″ suction and pressure ports.
- Tapered shaft.
- For tractor use with HARDI transmission shaft.
- Supplied with wide base plate.
- Flow Rate: 31L/Min.
- Normal operating revolutions: 540 RPM.
- Maximum pressure: 220 PSI (15 bar).
- Maximum vacuum: 13.4 PSI (0.91 bar).
- Weight: 34 lbs (15.4 kg).
Recommended to use HARDI suction and pressure dampers.
- Compact two diaphragm positive displacement pump.
- Low power consumption.
- Self-priming.
- Can be run dry.
- Can rotate clockwise or anticlockwise.
- Single grease point for lubrication.
- Dry sump to simplify maintenance.
- No special tools are needed for maintenance.
- Polyurethane diaphragms and seals.
- Cast iron crankcase and covers.
- 3/4″ suction and pressure ports.
- Tapered shaft.
- For tractor use with HARDI transmission shaft.
- Supplied with wide base plate.
- Flow Rate: 31L/Min.
- Normal operating revolutions: 540 RPM.
- Maximum pressure: 220 PSI (15 bar).
- Maximum vacuum: 13.4 PSI (0.91 bar).
- Weight: 34 lbs (15.4 kg).
Recommended to use HARDI suction and pressure dampers.
