Croplands 3PTL Sprayer, AR80 Pump, 5 way controller

The Croplands 3PTL Agripak Spray Unit is a 600 litre linkage sprayer with flushing tank and a hand wash tank. The flushing tank is so you can flush the boom, pump, and plumbing system in-field or back at the filling station, To operate the flushing system the 3-way valve next to the suction filter is turned in an anti-clockwise direction and fresh water is then drawn from the flush tank to flush the pump, hoses and boom. A hand-wash tank is also fitted to the sprayer so if the sprayer filter is blocked while the operator is in the middle of a spraying job, clean water is available from the hand-wash tank to rinse the screen. (Ensure only clean water is stored in the hand wash tank and that gloves are used when cleaning filter screens.) An AR80 cardan shaft, triple diaphragm, poly heads and manifolds pump is standard on this unit, and the pump has 76 L/min open flow, 20 Bar max pressure and is liquid fertiliser ready. This unit comes with a 5 tap UCM control unit which has a master shut-off lever and 5 taps that can be used to control boom sections. (if fitted with a boom)

Product Features:
- AR80 Pump, 80L/min, 580psi.
- 5 tap UCM control unit.
- liquid fertiliser-ready pump.
- sprayer flushing tank.
- hand-wash tank.

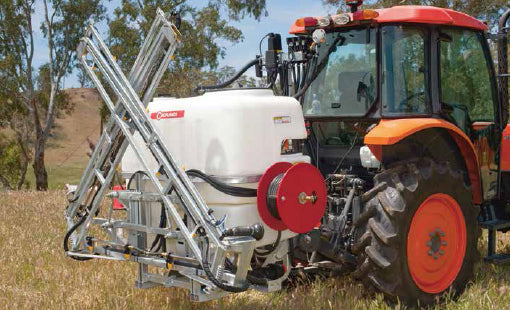

*Pictured with optional Boom and hose reel.
