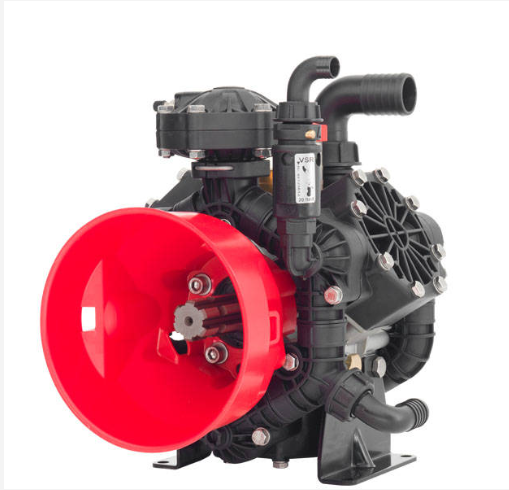

Annovi Reverberi Spray Pump AR80 76 L/Min 290Psi
PUMSAR80
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
The Annovi Reverberi AR80Semi-hydraulic two-diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Remote oil tank installation kit available on request. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. Spherical sector profile valves for lower flow resistance and improved volumetric efficiency.
Product Specs for the Annovi Reverberi AR80 Spray Pump:
• Max Flow: 20.08 GPM (76 L/Min).
• Max Pressure: 20 Bar (290 Psi).
• Power: (Hp) 3.4.
• RPM: 550.
• Input: 1.3/8″ 6 Spline Male Shaft.
• Suction Inlet Diameter: Ø40 mm.
• Delivery Outlet Diameter: Ø25 mm.
• Number of diaphragms: 3.
• Diaphragm/Seal Material: NBR.
• Pump Body Material: Parts in contact with liquid are made in plastic material and aluminium items are plastic coated to provide protection from chemical products used in agriculture.
Rugged feet secured to pump casing. Mass-produced safety valve and cardan protection. Geomet metal fasteners.
• Max Flow: 20.08 GPM (76 L/Min).
• Max Pressure: 20 Bar (290 Psi).
• Power: (Hp) 3.4.
• RPM: 550.
• Input: 1.3/8″ 6 Spline Male Shaft.
• Suction Inlet Diameter: Ø40 mm.
• Delivery Outlet Diameter: Ø25 mm.
• Number of diaphragms: 3.
• Diaphragm/Seal Material: NBR.
• Pump Body Material: Parts in contact with liquid are made in plastic material and aluminium items are plastic coated to provide protection from chemical products used in agriculture.
Rugged feet secured to pump casing. Mass-produced safety valve and cardan protection. Geomet metal fasteners.
