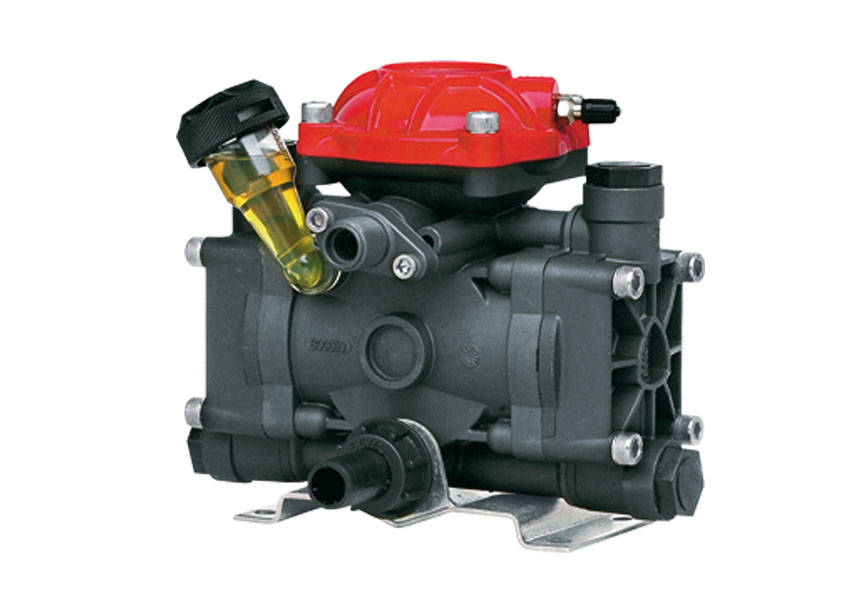

Annovi Reverberi AR252 Spray Pump 25 L/Min 362 Psi
PUMSAR252
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
The Annovi Reverberi AR252 Semi-hydraulic two-diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Remote oil tank installation kit available on request. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. Spherical sector profile valves for lower flow resistance and improved volumetric efficiency. Rugged feet secured to pump casing. Mass-produced safety valve and cardan protection. Geomet metal fasteners.
Product Specs for the Annovi Reverberi AR252 Spray Pump:
• Max Flow: 25 L/Min.
• Max Pressure: 25 Bar (362 Psi).
• 3/4 Inch Hose Barb Suction.
• 1/2 Inch Male BSP Thread.
• Input: 7/8″/ 22mm Keyed Shaft.
Annovi Reverberi AR252 low pressure pump with bare shaft, twin diaphragm, and anodised alloy. Ideal for small boom sprayers.
Product Specs for the Annovi Reverberi AR252 Spray Pump:
• Max Flow: 25 L/Min.
• Max Pressure: 25 Bar (362 Psi).
• 3/4 Inch Hose Barb Suction.
• 1/2 Inch Male BSP Thread.
• Input: 7/8″/ 22mm Keyed Shaft.
Annovi Reverberi AR252 low pressure pump with bare shaft, twin diaphragm, and anodised alloy. Ideal for small boom sprayers.
