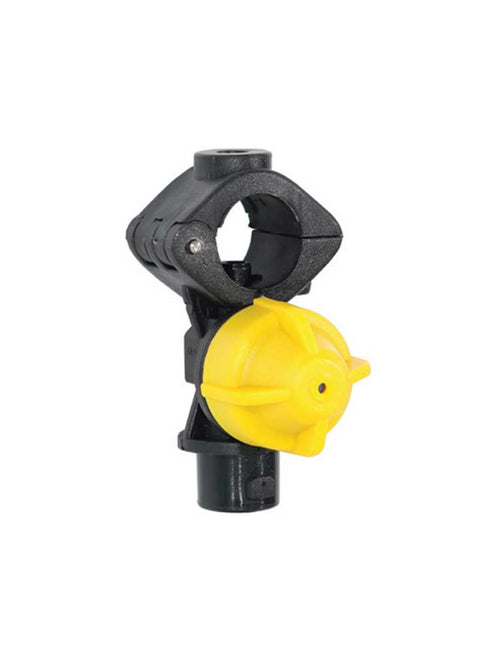

Nozzle Body 1/2" 21.7mm tube 7mm Nipple Hustler, Silvan
NOZB3007001
$22.52
+ GST
Spend $1,000.00 More to Unlock Free Shipping
PRODUCT INFORMATION
This nozzle body series was designed so that the body will be mounted higher on the boom unit, which through this safer placement, increases the nozzle body's security and can increase its life span. Furthermore, the nozzle bodies mount to a 7mm hole in the pipe/tubing, and has a positive shutoff between consecutive spraying positions.
Features:
- 21.7mm (1/2") Tubing.
- 1/2" Nozzle Body.
- Drill hole size: 7mm.
- Maximum Pressure: 300 P.S.I.
- Flow Rate: 2.25 GPM with 5 P.S.I. pressure drop, 3.18 GPM with 10 P.S.I. pressure drop.
- Complete with ChemSaver diaphragm check valve Standard diaphragm opens at 10 P.S.I.
- Short assembly time due to hinged upper clamp Standard EPDM diaphragm and Viton options.
Features:
- 21.7mm (1/2") Tubing.
- 1/2" Nozzle Body.
- Drill hole size: 7mm.
- Maximum Pressure: 300 P.S.I.
- Flow Rate: 2.25 GPM with 5 P.S.I. pressure drop, 3.18 GPM with 10 P.S.I. pressure drop.
- Complete with ChemSaver diaphragm check valve Standard diaphragm opens at 10 P.S.I.
- Short assembly time due to hinged upper clamp Standard EPDM diaphragm and Viton options.
