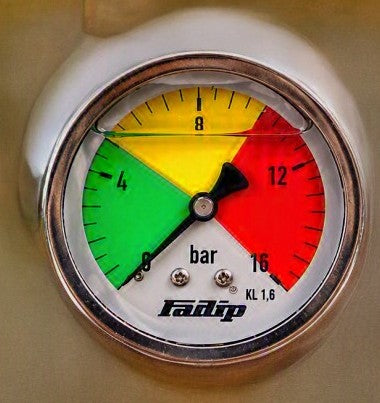

Hardi Pressure Gauge Isometric Rear Mount 100mm 0 - 16 Bar

The Hardi 100mm Isometric Gauge is a Compact Liquid- Filled Pressure Gauge Engineeered for Accurate, Vibration-Dampened Readings in Spraying, Hydraulic, and Compressed Air Systems. The Glycerine Fill Stabilises the Needle under Pulsating Pressure, Extending Gauge Life and Improving Readability in the Field.
Fits Standard 1/4 BSP Ports - A Direct Fit Replacement for most High Pressure Diaphragm Pumps and Pressure Control Regulators and other Compatabie Pressure Control Assemblies.
The Isometric Gauge features an Asymmetrical Scale that gives you the most Accurate Pressure Readings while operating your Boom Sprayer at Low Pressure and your Spray Gun at High Pressure.
Specifications:
- Rear Mount.
- Face Diameter 100mm.
- Isometric Gauge (Asymmetrical Scale).
- Pressure Range: 0 - 260Psi.
- Connection: 1/4 BSP Thread.
- Fill: Liquid-Filled (Glycerine) for Vibration Resistance.
- Compatable Media: Water, Liquid Chemicals, Air, Hydraulic Fluid.
Ideal For:
- High Pressure Controllers (eg, Linkage Sprayers).
- Low Pressure Spraybooms.
- High Pressure Deck Mounted Sprayers (eg, Engine Driven Models) that also operate Spray Booms.
